430202200 Molex Custom Wire Harness

430202200 Molex Custom Wire Harness

• 2025-06-09 15:07:27
• by Admin

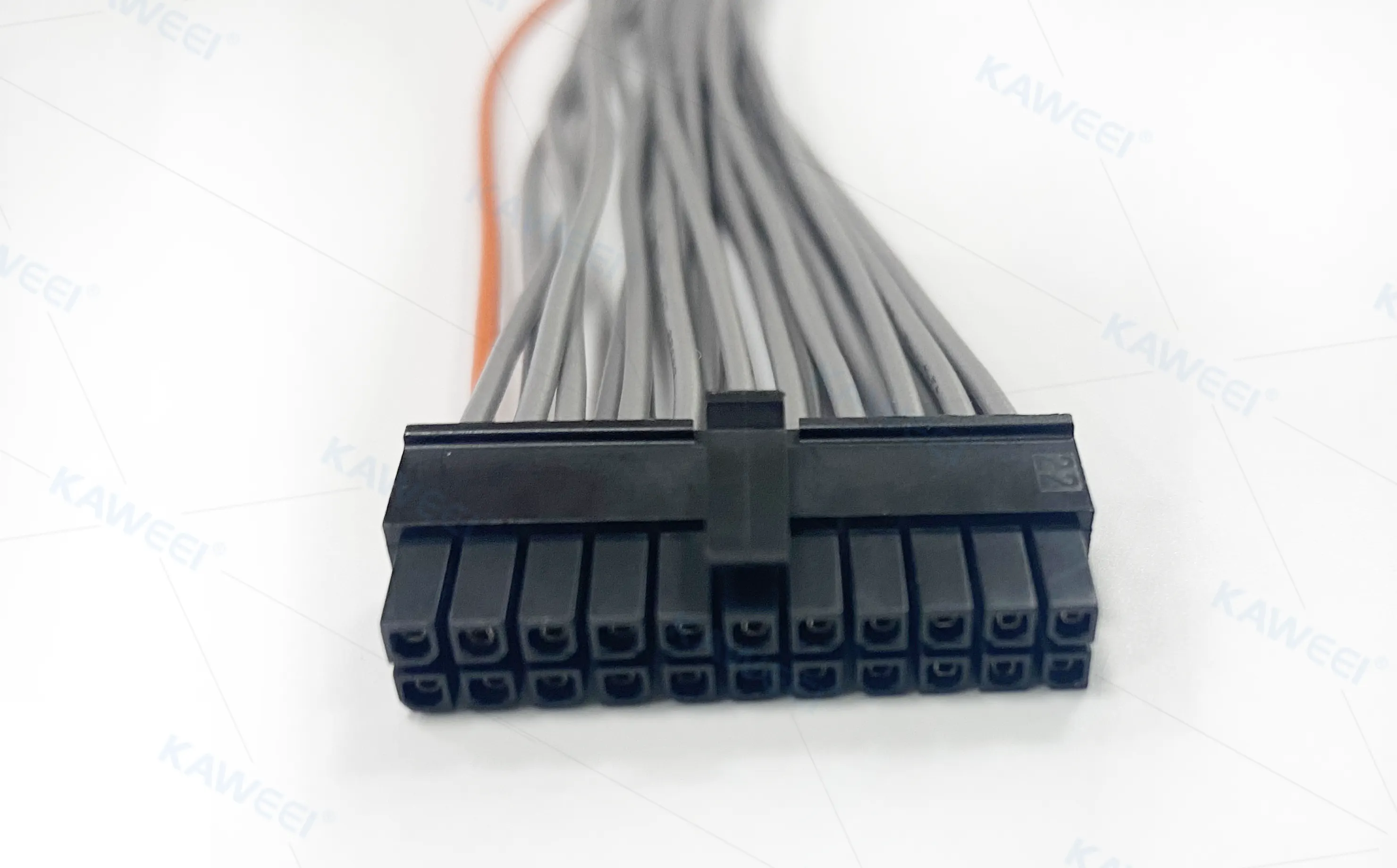

This custom harness uses high-quality Molex 43025-2200 double-row socket connector (2.50mm pitch, 22 positions) with Molex 43030-0002 crimp terminals (for AWG 22-28 wires), designed for medium current signal transmission applications, widely used in consumer electronics, industrial control, LED lighting, home appliances and other fields.

Main features:

Connector model: Molex 43025-2200

• Series: Molex KK 254 series
• Number of poles: 22 positions
• Pitch: 2.50 mm
• Installation method: wire-to-board connection
• Lock design to enhance connection firmness

Terminal model: Molex 43030-0002

• Material: phosphor bronze, tinned
• Applicable wire range: AWG 22–28
• Supports efficient automated crimping process, reliable connection

Application features:

• High reliability, suitable for vibration and temperature difference environment
• Supports customized wire length, wire gauge, color and identification
• Single and double heads, sheath, heat shrink tube and other processing options can be configured according to customer needs
• Meets UL/CSA standards and is suitable for a variety of safety requirements projects

Optional services:

• Overall wire harness assembly and terminal crimping service
• Electrical performance testing and quality traceability
• Small batch proofing and mass production support

If you need samples or technical support, please contact our engineering team, we can tailor a cost-effective wire harness solution for you.
