OBD connector and XH2.54 connector harness

OBD connector and XH2.54 connector harness

• 2025-04-29 15:25:42
• by Admin

Connector: 16-pin male to female OBD connector

OBD (‌Onboard Diagnostic System‌) monitors the engine operating status and exhaust emissions in real time through sensors. When excessive emissions or component failures are detected, the fault indicator light will be triggered and the fault code will be stored to help maintenance personnel quickly locate the problem.

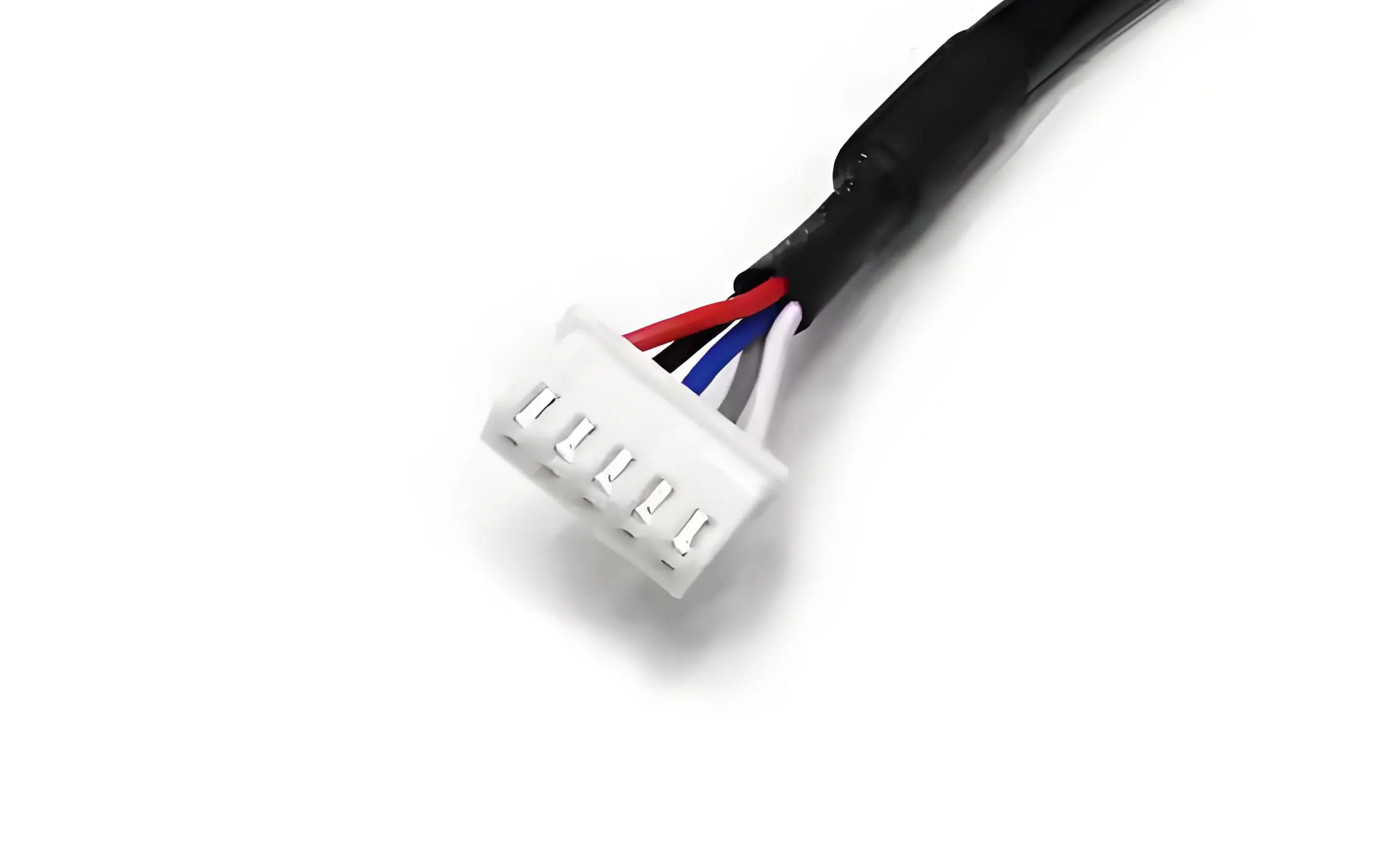

Connector: JST XH2.54

‌Pitch‌: 2.54mm (compatible with some models marked as 2.5mm);

‌Pin type‌: straight pin, curved pin, horizontal sticker, vertical sticker, and other packaging forms.

XH2.54 terminal is an electronic connector with a standardized design of 2.54 mm pitch, which is widely used in circuit boards and cables.

XH2.54 terminal has become a universal solution in the field of electronic connection due to its standardization, high reliability and flexible configuration.

If you need custom wiring harnesses, please feel free to contact us.
