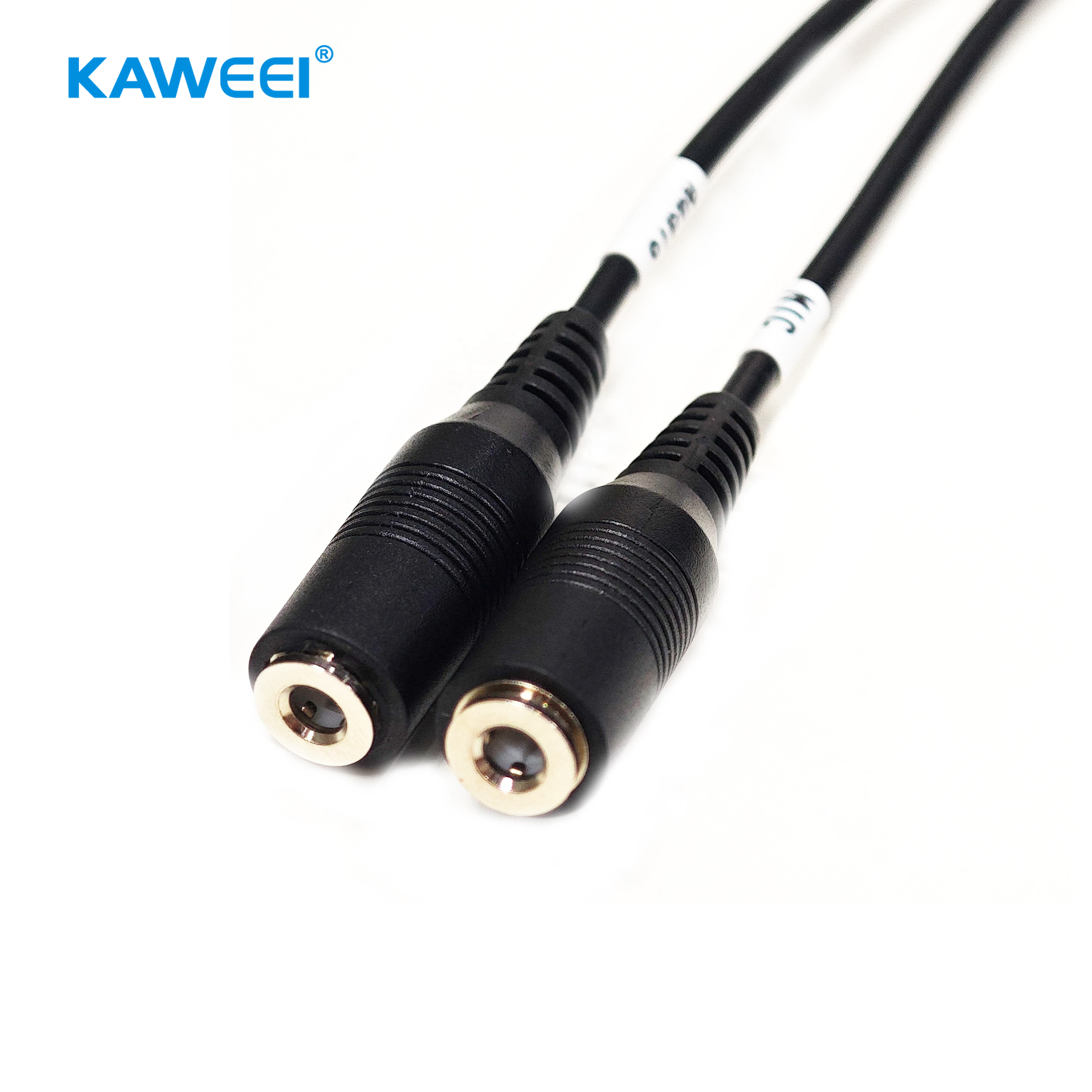

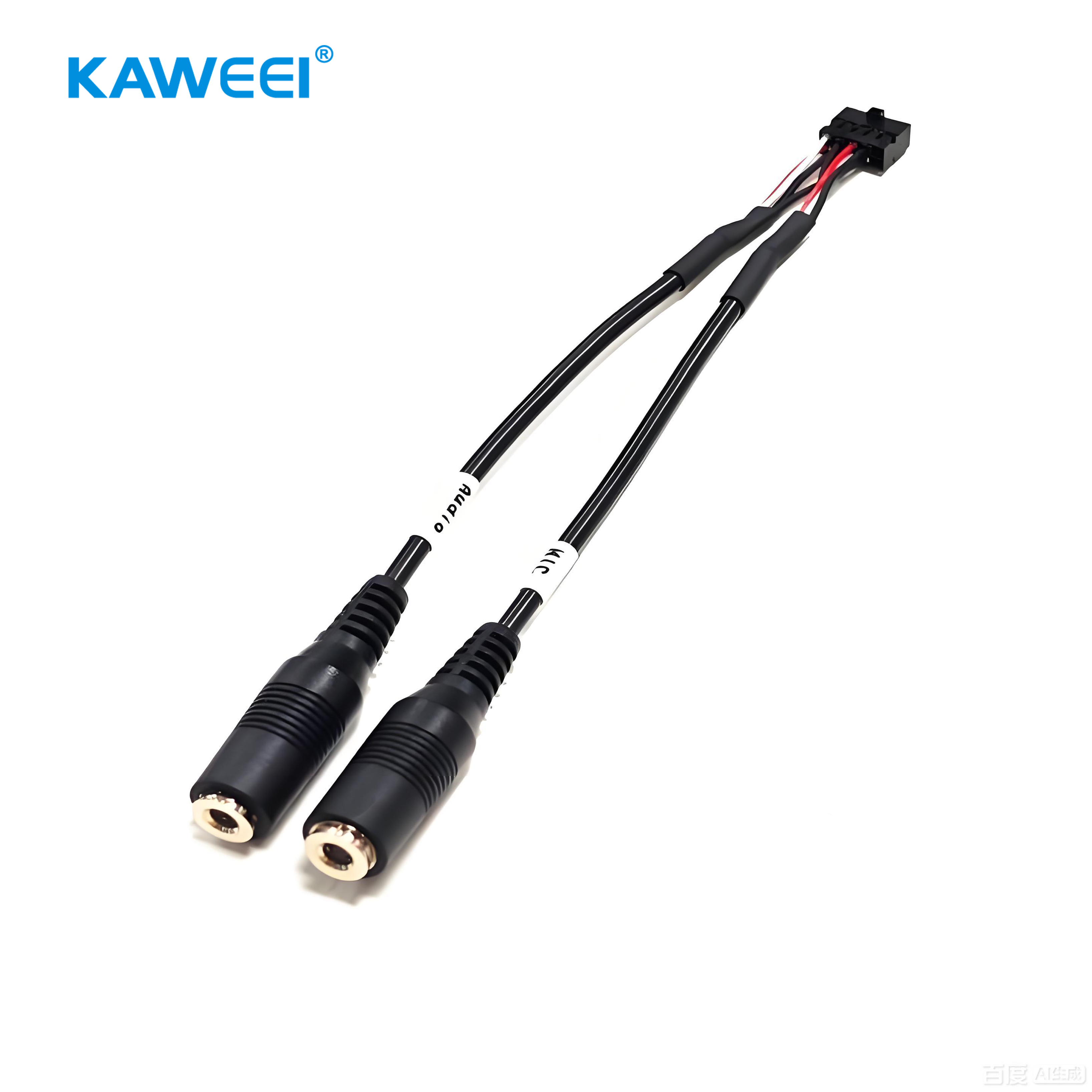

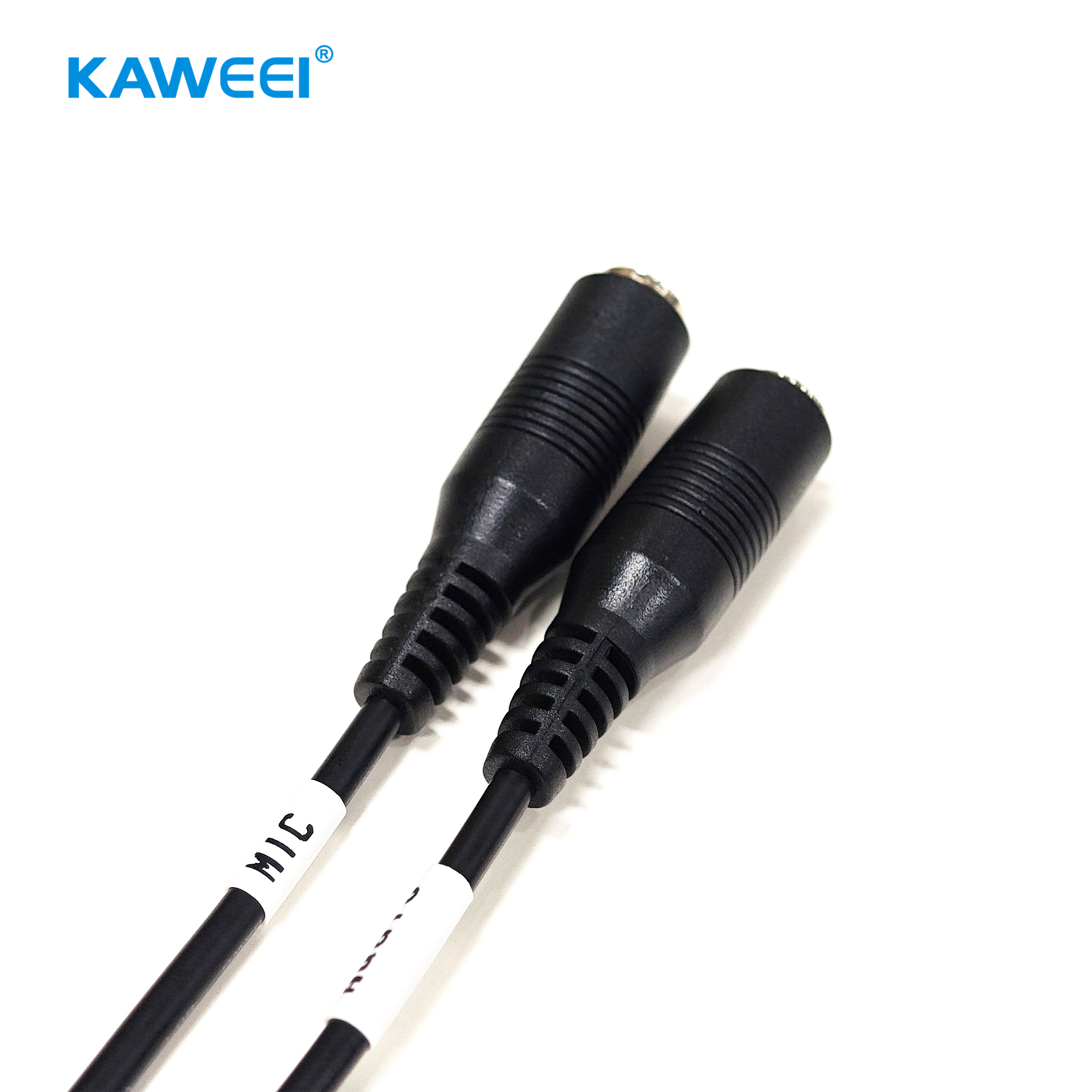

Custom 8-Core Audio Cable Assembly with Double Overmolded Connectors & PVC Jacket
Made to order
No fixed price. Each project is quoted based on your drawings, materials, connectors, specifications and order quantity.
1. Custom cable assembly 8C PVC outter jacket material with audio connector internal and outer molding. 2. Designed for consumer electronics, audio and video equipment
Custom Double-Overmolded Audio & Signal Solutions
We provide ruggedized cable assembly services featuring double-overmolding technology. Designed for professional audio, medical devices, and industrial signal transmission where durability and strain relief are paramount.
| Assembly Feature | Technical Specification | Kaweei Process Advantage |
|---|---|---|
| Molding Process | Double Overmolding (Inner PE/PP + Outer PVC) | Inner mold secures solder joints; outer mold provides ergonomics and superior strain relief compared to assembled shells. |
| Cable Construction | 8-Core Multiconductor (Oxygen-Free Copper) | We source high-fidelity audio grade or industrial signal wires based on your flexibility and impedance requirements. |
| Connector Type | Custom 8-Pin (DIN, Mini-DIN, or Proprietary) | Capability to create custom tooling/molds to encapsulate any specific connector type you require. |
| Strain Relief (SR) | Integrated Flex Tail | The overmolded SR design is calculated to prevent cable breakage at the critical exit point during frequent bending. |
| Aesthetics | Custom Color / Logo Embossing | We can incorporate your brand logo directly into the mold tool for a professional, OEM finish. |
Why Choose Overmolding for Audio Cables?
As a specialized wire harness solution provider, Kaweei recommends double overmolding for applications requiring longevity:
- Enhanced Durability: The solid molded body protects internal solder points from vibration, moisture, and pulling forces.
- Custom Tooling Services: We offer low-cost tooling services to design unique connector shapes that match your device's ID (Industrial Design).
- Material Flexibility: While PVC is standard, we can also mold with TPE or TPU for a softer touch and better oil resistance in industrial settings.
Technical Specifications
| Wire Type | Multi-Core Cable |

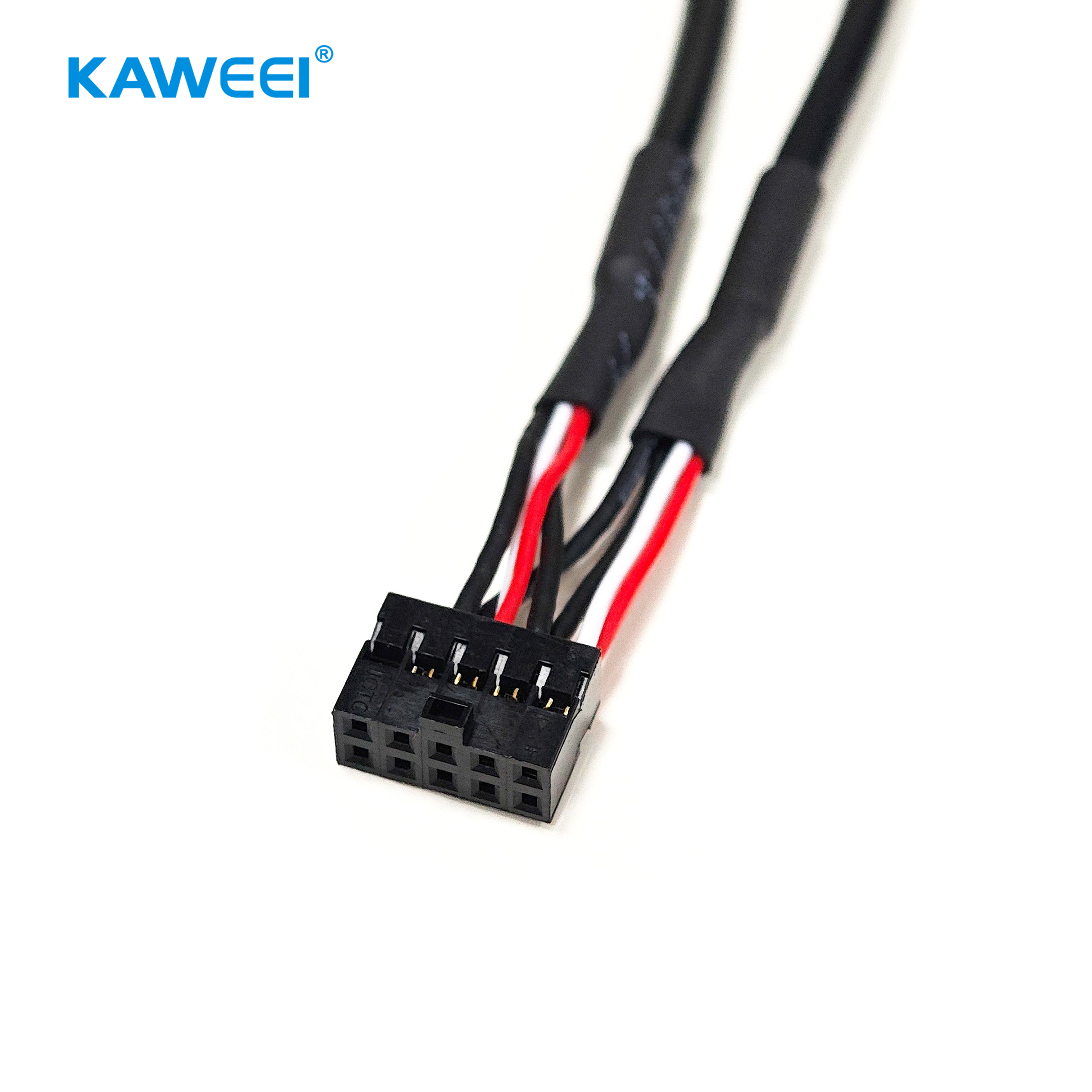

| Connector Type | DuPont series and Audio connector |
| Conductor Material | Copper |
| Outer Jacket Material | PVC |
| Applications | Signal Transmission Devices |
Key Features
360° EMI Shielding
Aluminum foil wrapping plus high-density tinned copper braid ensure 360° seamless shielding effectiveness.
High Interference Immunity
Optimized twisted-pair structure maintains signal integrity even in complex electromagnetic environments.
Eco-Friendly
Selected materials with RoHS and REACH compliance documentation are available according to project requirements. Coverage is confirmed against the project BOM.
Project Certification Requirements
Certification requirements and applicable documentation are confirmed for each project. UL certification of a selected material does not automatically certify the finished assembly.
