XT90 Connector Harness: Engineering Tips for Better Performance

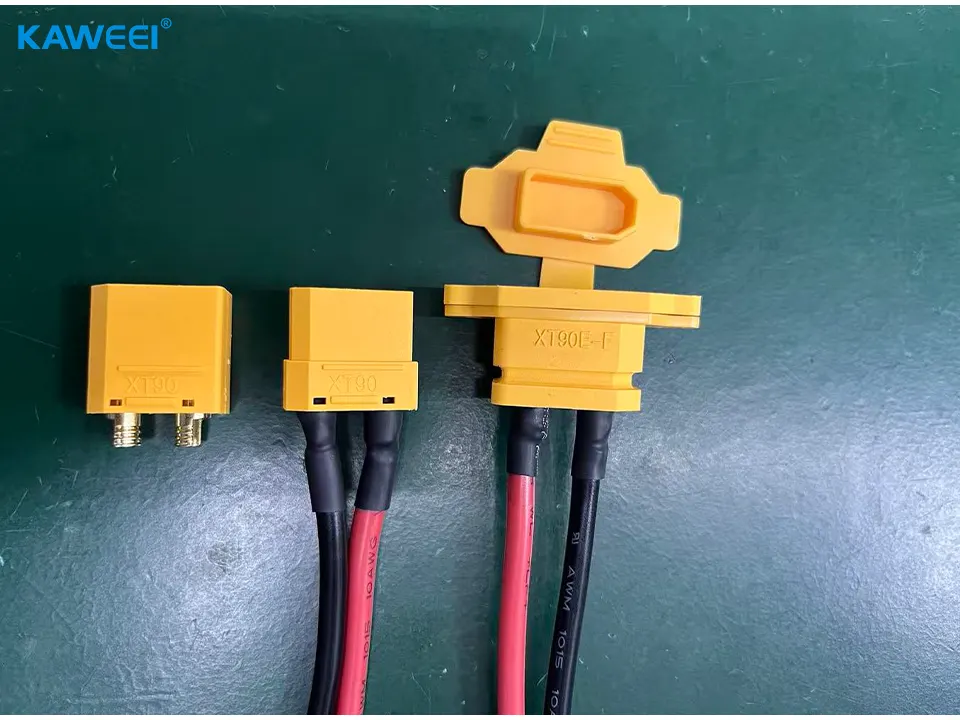

I recently finished a batch of custom XT90 female connector harnesses for a client. In our shop at Kaweei, we deal with power connectors every single day. While the XT90 is a standard for high-current applications, I’ve seen countless projects suffer from "mysterious" power drops or overheating issues.

The problem is rarely the connector itself—it’s usually the post-processing and soldering technique.

1. Thermal Capacity: The Hidden Challenge

The XT90 is a beast when it comes to current handling, but those large copper pins act as a massive heat sink. If you’re using a low-wattage iron, you’ll likely end up with a "cold solder joint" because the connector pulls the heat away too fast.

In our workshop, we use temperature-controlled stations to ensure the solder flows instantly. You want "quick in and out"—if you hold the iron too long, the plastic housing will deform. Even a slight deformation shifts the pin alignment, which increases resistance and guarantees overheating during peak loads.

2. Wire Gauge and Voltage Drop

I’ve had clients try to save on costs by using thinner wires for XT90 setups. If you’re pushing the connector's 90A capacity, you shouldn't be using anything less than 10AWG or 8AWG high-strand count silicone wire.

At Kaweei, we treat the connector and the wire as a single system. If the cable is too thin, you’re losing efficiency to voltage drop before the power even reaches your device.

3. The "Small Details" That Matter (SOPs)

We don't just solder and ship. Here is what we do as a standard process:

Pre-tinning: We always pre-tin the cable and the terminal separately. It ensures a 100% bond rather than a weak surface connection.

Double-wall Adhesive Heat-shrink: Standard PVC tape doesn't cut it. We use adhesive-lined heat-shrink tubing to seal the joint. It prevents moisture ingress and adds mechanical strain relief, which is critical for vibration-heavy applications like drones or EVs.

Pull-Testing: Every batch undergoes a mechanical pull test. If it doesn't hold up under pressure in the shop, it won't be sent to the field.

Our Take on Custom Harnesses

You can buy XT90 connectors anywhere, but a connector is only as reliable as the harness behind it. Whether you are building an industrial power unit or a custom battery pack, don't let a bad solder joint become the bottleneck of your system.

At Kaweei Electronics, we focus on repeatable, professional-grade processing. If you have an upcoming project or need a custom harness solution that actually holds up under stress, feel free to reach out. We don’t just supply parts; we ensure the power flows where it needs to go.
