8P8C Gold Plated Transparent RJ 45 Wire Harness
Made to order
No fixed price. Each project is quoted based on your drawings, materials, connectors, specifications and order quantity.

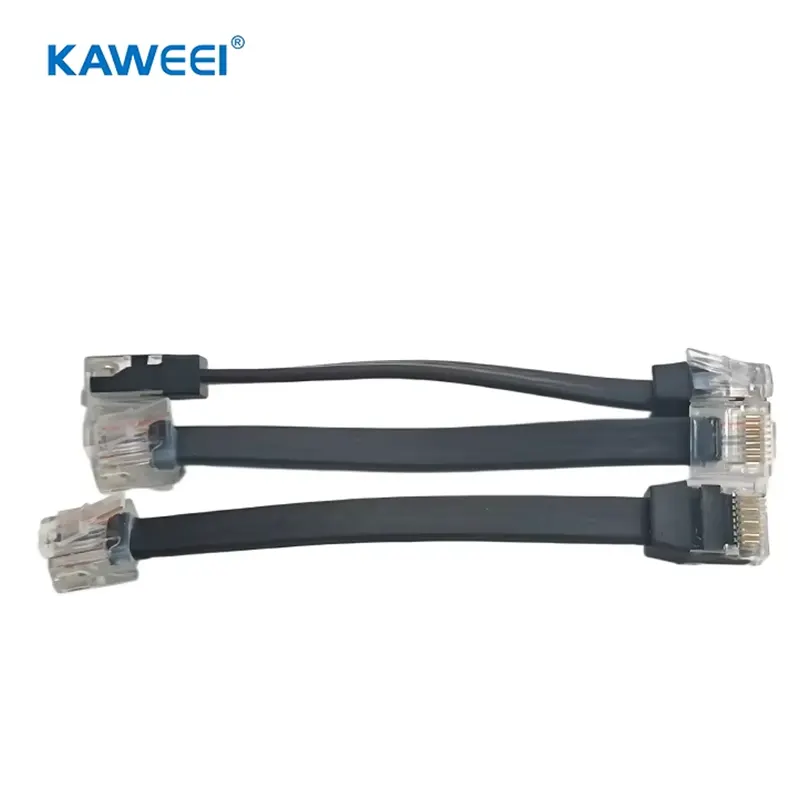

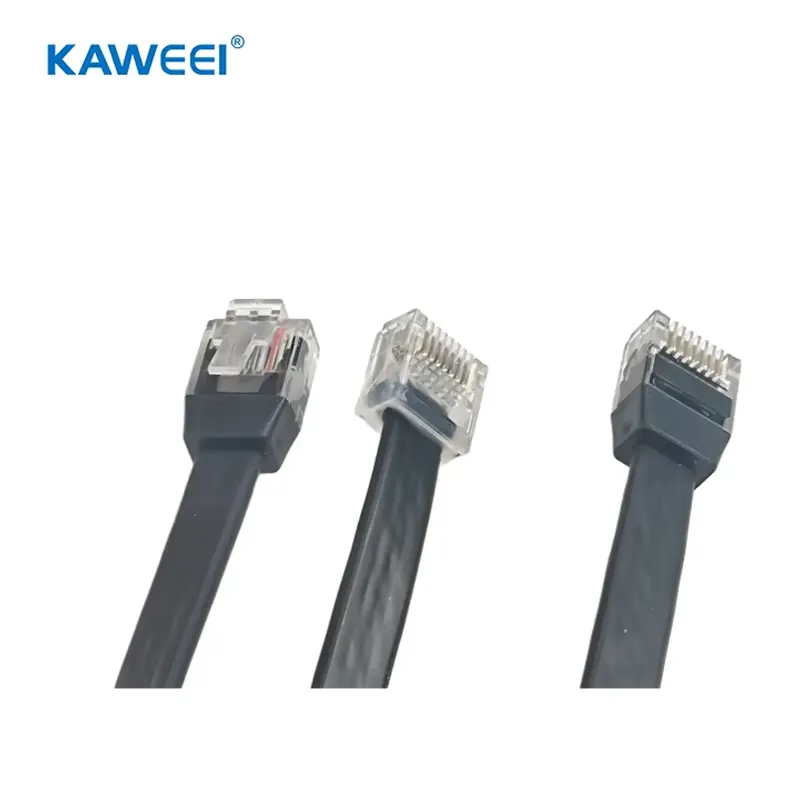

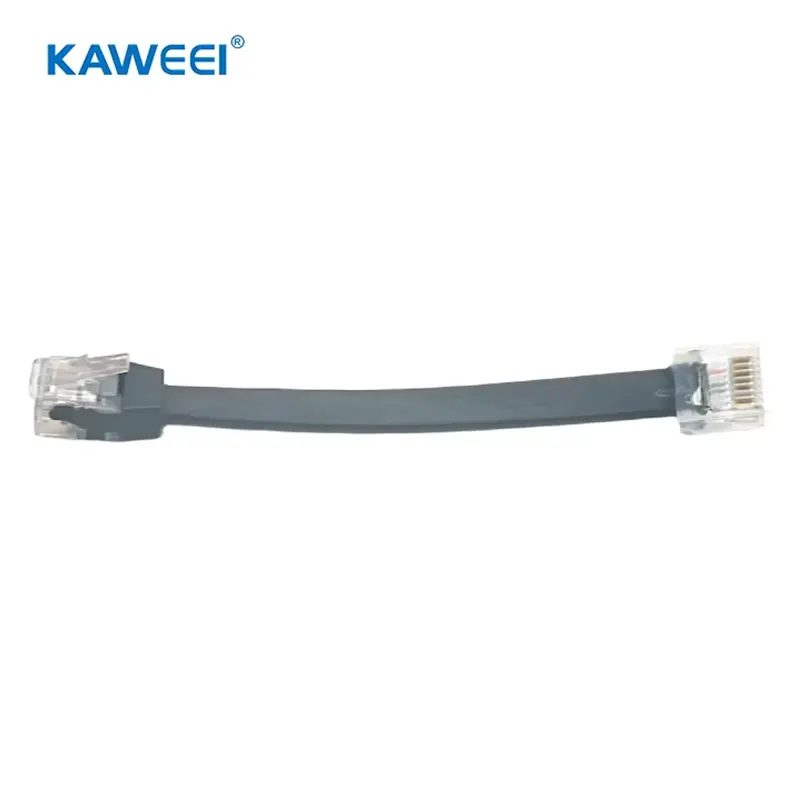

Custom Flat CAT 5e 28AWG UTP Wire Harness designed for space-saving installations. Equipped with Gold Plated 8P8C Transparent RJ45 connectors and robust PVC strain relief. Flexible Ethernet connectivity for industrial and commercial use.
Reliable RJ45 Connectivity for Data & Industrial Control
Kaweei specializes in the precision assembly of RJ45 (8P8C) cable harnesses. We utilize high-clarity polycarbonate connectors with gold-plated contacts to ensure optimal signal integrity. Unlike standard off-the-shelf patch cords, our solutions are cut to length and terminated according to your specific system requirements.
| Component Spec | Feature Detail | Kaweei Assembly Value |
|---|---|---|
| Connector Type | RJ-45 (8P8C) Modular Plug | Transparent Housing: We use high-clarity housing allowing for visual inspection of wire order and seating depth before and after crimping. |
| Contact Integrity | Gold Plated Contacts | Custom Plating Thickness: We offer various gold plating options (e.g., 3u", 15u", 50u") to balance cost and corrosion resistance based on your mating cycle requirements. |
| Wiring Logic | T568A / T568B / Custom | We terminate strict standard network pinouts or proprietary cross-over/sensor pinouts as defined by your engineering diagram. |
| Cable Integration | Cat5e / Cat6 / Cat6A | We process both UTP (Unshielded) and STP (Shielded) cables, ensuring the drain wire and shield are correctly terminated to the connector shell for EMI protection. |
| Strain Relief | Molded / Assembled Boots | We add snagless boots or strain relief covers to prevent the release tab from snapping and to protect the crimp point from bending stress. |
Factory-Grade Termination vs. Field Crimping
Reliable network communication depends on the quality of the physical connection. Kaweei ensures consistency that field crimping cannot match:
- Precision Crimping: Our automated or semi-automated crimping machines apply the exact force required to pierce the wire insulation without crushing the copper strands.
- Contact Performance: The gold-plated contacts ensure low contact resistance and prevent oxidation, critical for PoE (Power over Ethernet) and data transmission in humid environments.
- Signal Testing: We perform continuity, pin-map, and optional Fluke testing to ensure every harness meets transmission standards before shipping.
Technical Specifications
| Wire Type | PVC |
| Wire Gauge (AWG) | 28AWG |
| Voltage Rating | 30V |
| Temperature Rating | 80℃ |
| Connector Type | 8P 8C CATE 5E |
| Conductor Material | Glod copper |
Key Features
Wide Temperature Range
Designed for -40°C to +105°C, ensuring stable operation from freezing outdoors to high-temperature workshops.
Easy Installation
Standardized interface dimensions support quick assembly and disassembly, reducing on-site maintenance costs.
Eco-Friendly
Selected materials with RoHS and REACH compliance documentation are available according to project requirements. Coverage is confirmed against the project BOM.
Project Certification Requirements
Certification requirements and applicable documentation are confirmed for each project. UL certification of a selected material does not automatically certify the finished assembly.
